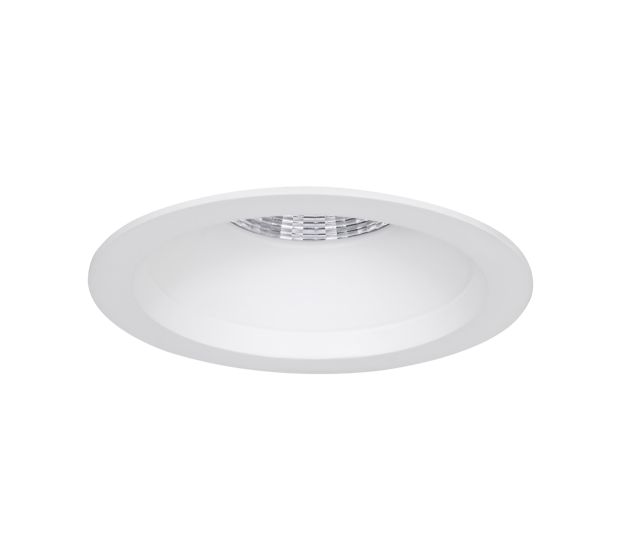

Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink
Reflector
Anodized aluminum reflector, designed specially for LED modules
LED
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
Constant current output LED driver with high efficiency and Pf≥0.90
Operating Temperature Range
0 °C/+35 °C
Option
DALI and Emergency Lighting Kit
*Double colour: Exterior RAL9016, Interior RAL9005
Color
Ral 9016
*Double

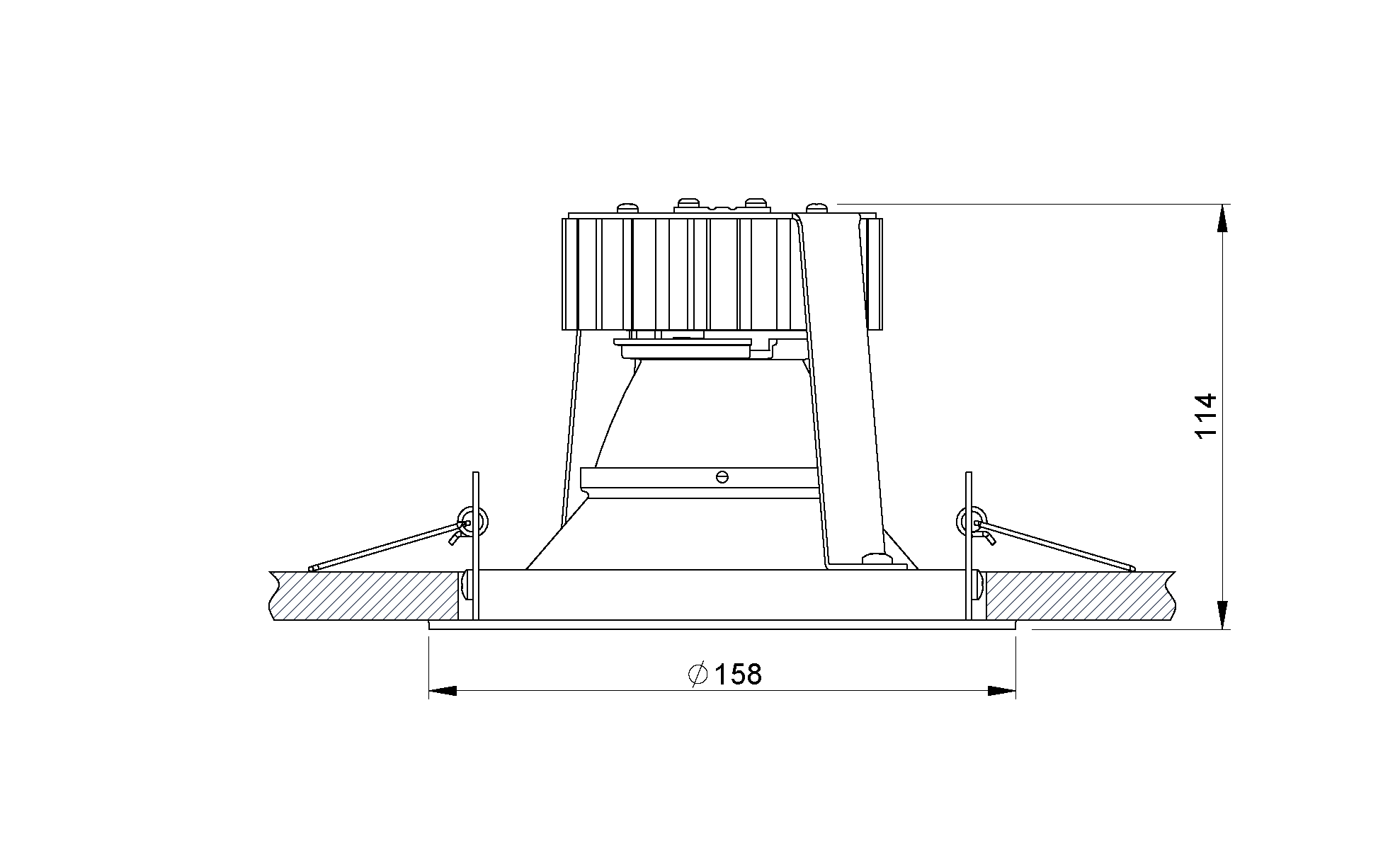

Dimensions
Light Distribution
- DGMOT.160.27.40.18

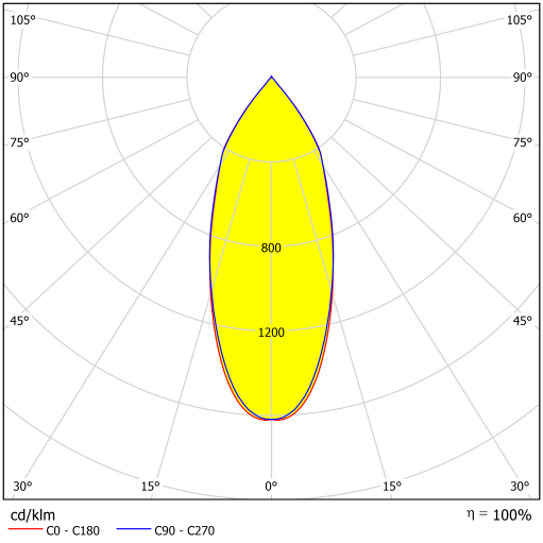

- DGMOT.160.27.40.40

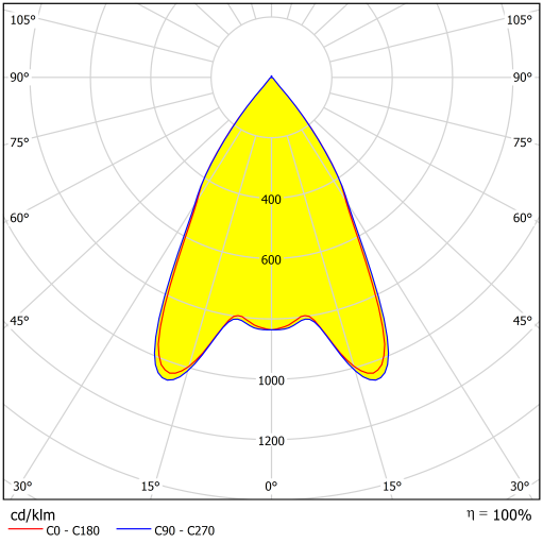

- DGMOT.160.27.40.65
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Cut-out Size (mm) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|---|
| DGMOT.160.19.40.18 | 19 | 4000 | 2512 | >80 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.19.30.18 | 19 | 3000 | 2360 | >80 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.19.40.40 | 19 | 4000 | 2410 | >80 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.19.30.40 | 19 | 3000 | 2270 | >80 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.19.40.65 | 19 | 4000 | 2510 | >80 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.19.30.65 | 19 | 3000 | 2360 | >80 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.27.40.18 | 27 | 4000 | 3310 | >80 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.27.30.18 | 27 | 3000 | 3310 | >80 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.27.40.40 | 27 | 4000 | 3180 | >80 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.27.30.40 | 27 | 3000 | 2990 | >80 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.27.40.65 | 27 | 4000 | 3300 | >80 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.27.30.65 | 27 | 3000 | 3110 | >80 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.19.40.18.90 | 19 | 4000 | 2210 | >90 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.19.30.18.90 | 19 | 3000 | 2220 | >90 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.19.40.40.90 | 19 | 4000 | 2120 | >90 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.19.30.40.90 | 19 | 3000 | 2100 | >90 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.19.40.65.90 | 19 | 4000 | 2230 | >90 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.19.30.65.90 | 19 | 3000 | 2210 | >90 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.27.40.18.90 | 27 | 4000 | 2920 | >90 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.27.30.18.90 | 27 | 3000 | 2910 | >90 | 220-240/50-60 | 0,7 | Ø142 | 18° (Spot) |
|
| DGMOT.160.27.40.40.90 | 27 | 4000 | 2780 | >90 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.27.30.40.90 | 27 | 3000 | 2770 | >90 | 220-240/50-60 | 0,7 | Ø142 | 40° (Medium) |
|
| DGMOT.160.27.40.65.90 | 27 | 4000 | 2920 | >90 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
| DGMOT.160.27.30.65.90 | 27 | 3000 | 2890 | >90 | 220-240/50-60 | 0,7 | Ø142 | 65° (Flood) |
|
