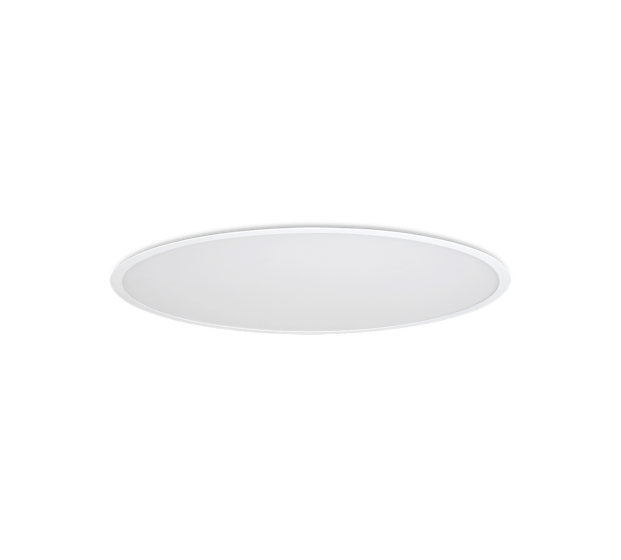

Dg 1038 Lot Header

Lotus

Ip 20Ikon 1ToprakCeEacAcil Cikis

Housing
Electrostatic matte powder painted aluminum.

Optics
Opal white diffuser with lambertian light distribution and high transmissivity.

Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and Pf≥0.95

Operating Temperature Range
0 °C/+35 °C

Options
1 or 3 hours emergency lighting kit
Dimming via DALI

Color
Ral 9016
Ral 9005
Ral 9006

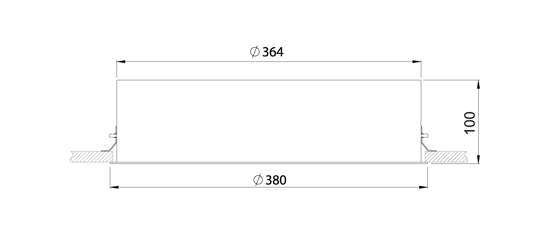

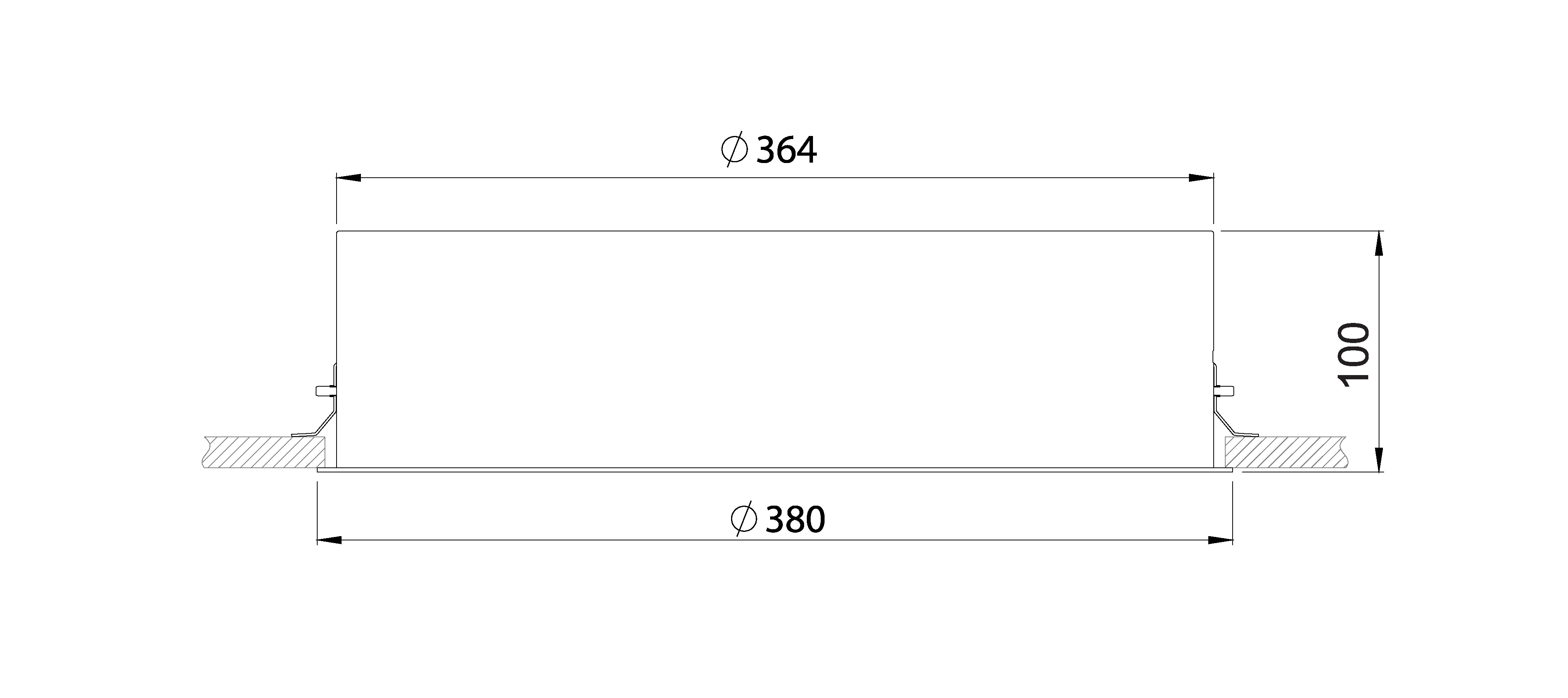

Dimensions
Dg1038lot Teknik Cizim

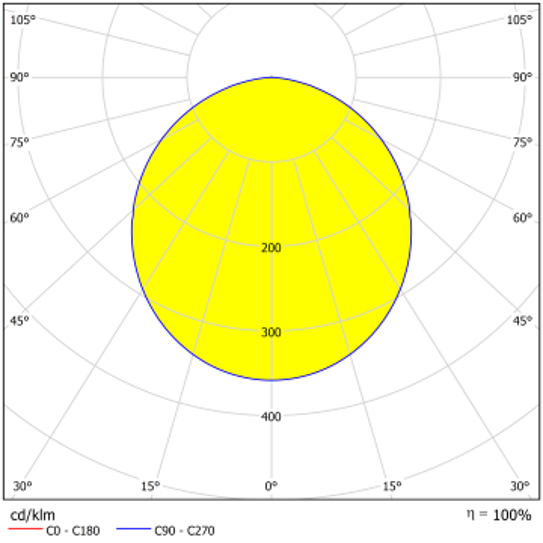

Light Distribution
1036Lot DG 1038 LOT
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Cut-out Size (mm) Files
DGLOT.380.24.30 24 3000 2100 >80 220-240/50-60 2,9 Ø366 Files
DGLOT.380.24.40 24 4000 2240 >80 220-240/50-60 2,9 Ø366 Files
