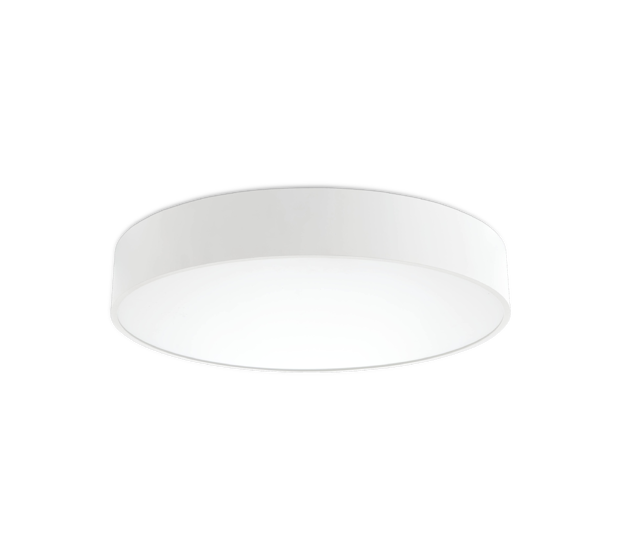

Ds 1036 Lot Header

Lotus

Ip 20Ikon 1ToprakCeEacAcil Cikis

Housing
Electrostatic matte powder painted aluminum.

Optics
Opal white diffuser with lambertian light distribution and high transmissivity.

Led
High-efficacy LED module with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and Pf≥0.95

Operating Temperature Range
0 °C/+35 °C

Options
1 or 3 hours emergency lighting kit
Dimming via DALI

Color
Ral 9016
Ral 9005
Ral 9006

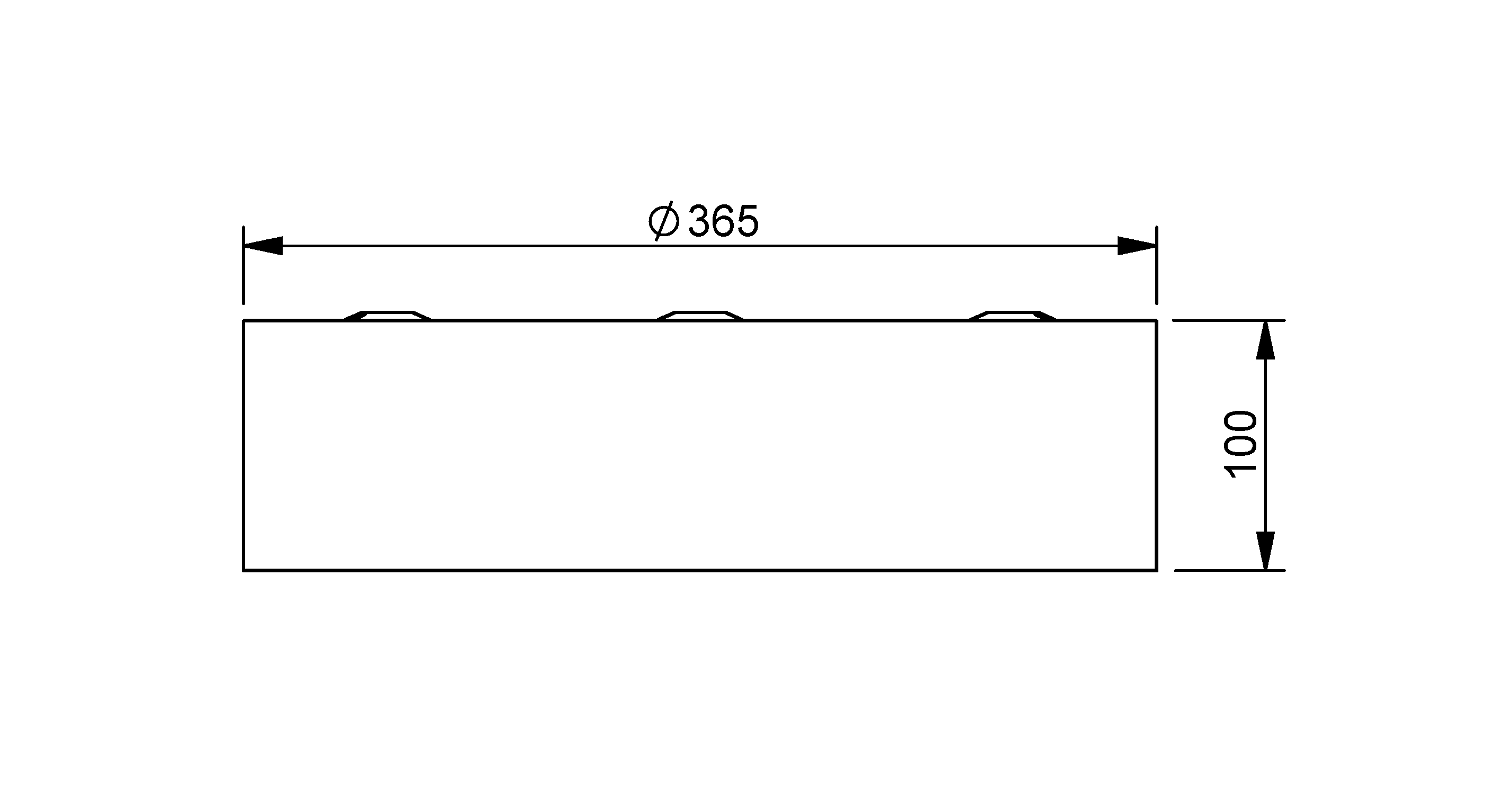

Dimensions
Ds1036lot Teknik Cizim

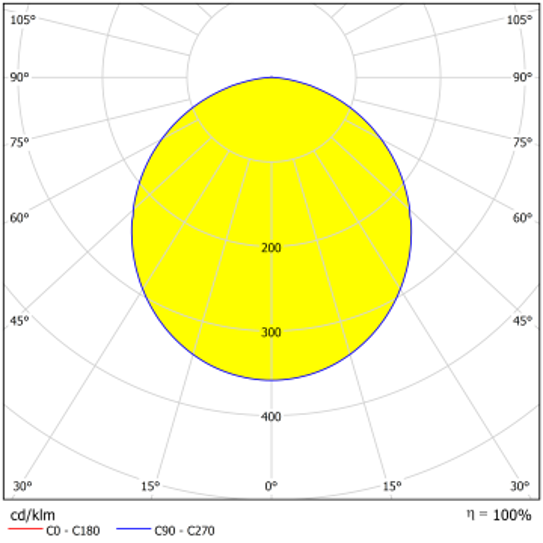

Light Distribution
1036Lot DS 1036 LOT
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Files
DSLOT.365.24.30 24 3000 2010 >80 220-240/50-60 2,9 Files
DSLOT.365.24.40 24 4000 2240 >80 220-240/50-60 2,9 Files
