RAA

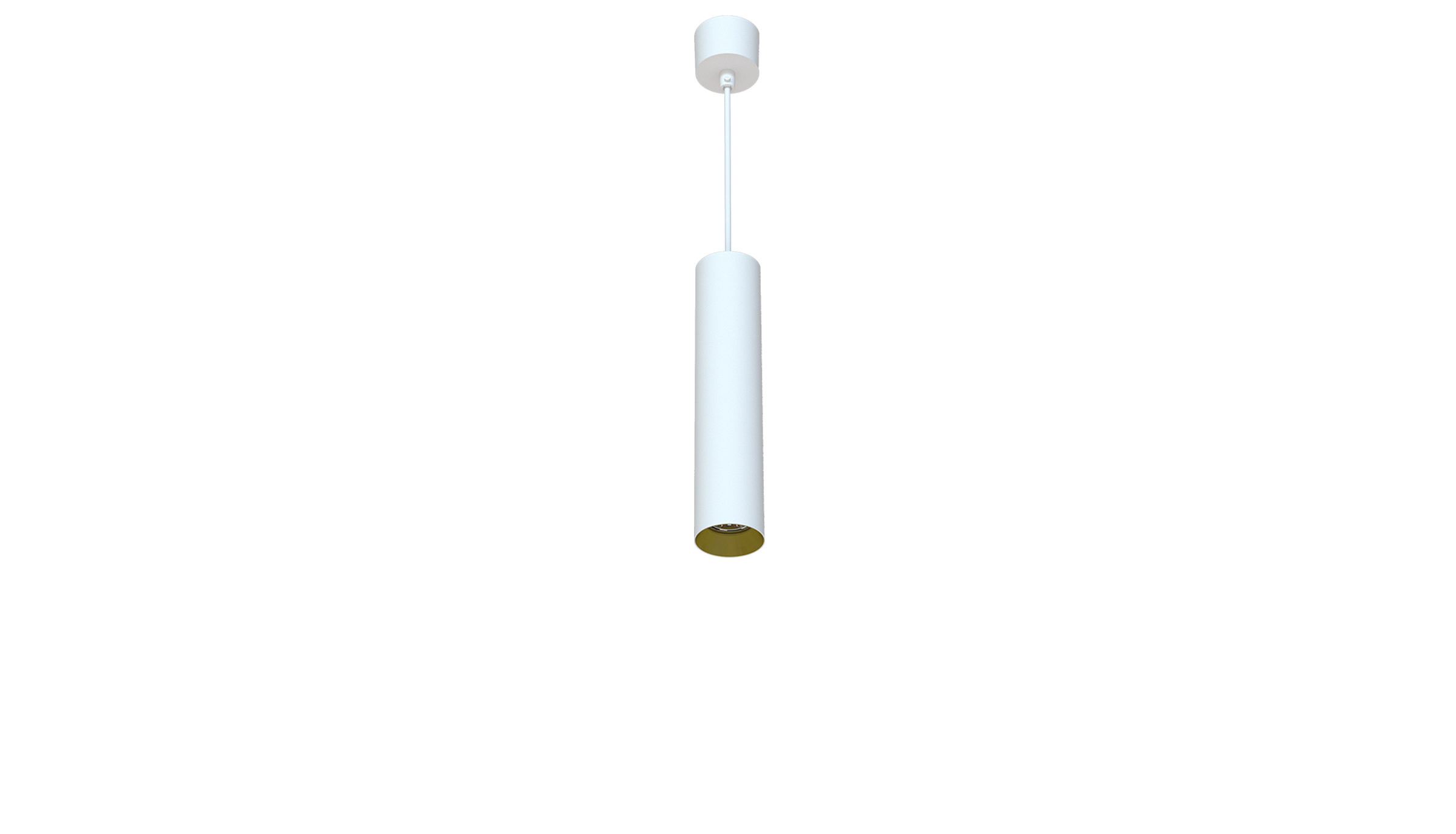

Stylish designs for stylish applications: Raa is designed as a compact spotlight that provides elegance without compromising its appearance. The powder-coated aluminum cylindrical body has an anti-shine baffle in front of it for visual comfort. Spot, medium and flood angle options are available, available in 1170lm (CRI90) or 1320lm (CRI80) options. Standard colors are black or gold baffle, white or black body.
Reflector
Polycarbon reflector designed for high efficiency in LED modules.
Led
According to L70B50 ≥50,000 hours, COB led with high efficacy factor and color rendering.
Driver
High efficiency pf >0.9 with constant current output system.
Option
* Dimming via DALI.
Color
*Double
Dimensions
Light Distribution
- SRAA.14.S.80.30
- SRAA.14.M.80.30
- SRAA.14.F.80.30
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| SRAA.14.S.80.27 | 14 | 2700 | 840 | >80 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRAA.14.S.80.30 | 14 | 3000 | 1160 | >80 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRAA.14.M.80.27 | 14 | 2700 | 830 | >80 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRAA.14.M.80.30 | 14 | 3000 | 1300 | >80 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRAA.14.F.80.27 | 14 | 2700 | 830 | >80 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRAA.14.F.80.30 | 14 | 3000 | 1360 | >80 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRAA.14.S.90.27 | 14 | 2700 | 880 | >90 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRAA.14.S.90.31 | 14 | 3100 | 1100 | >90 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRAA.14.M.90.27 | 14 | 2700 | 890 | >90 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRAA.14.M.90.31 | 14 | 3100 | 1080 | >90 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRAA.14.F.90.27 | 14 | 2700 | 900 | >90 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRAA.14.F.90.31 | 14 | 3100 | 1030 | >90 | 220-240/50-60 | 0,95 | Flood (50°) |
|
