RAA

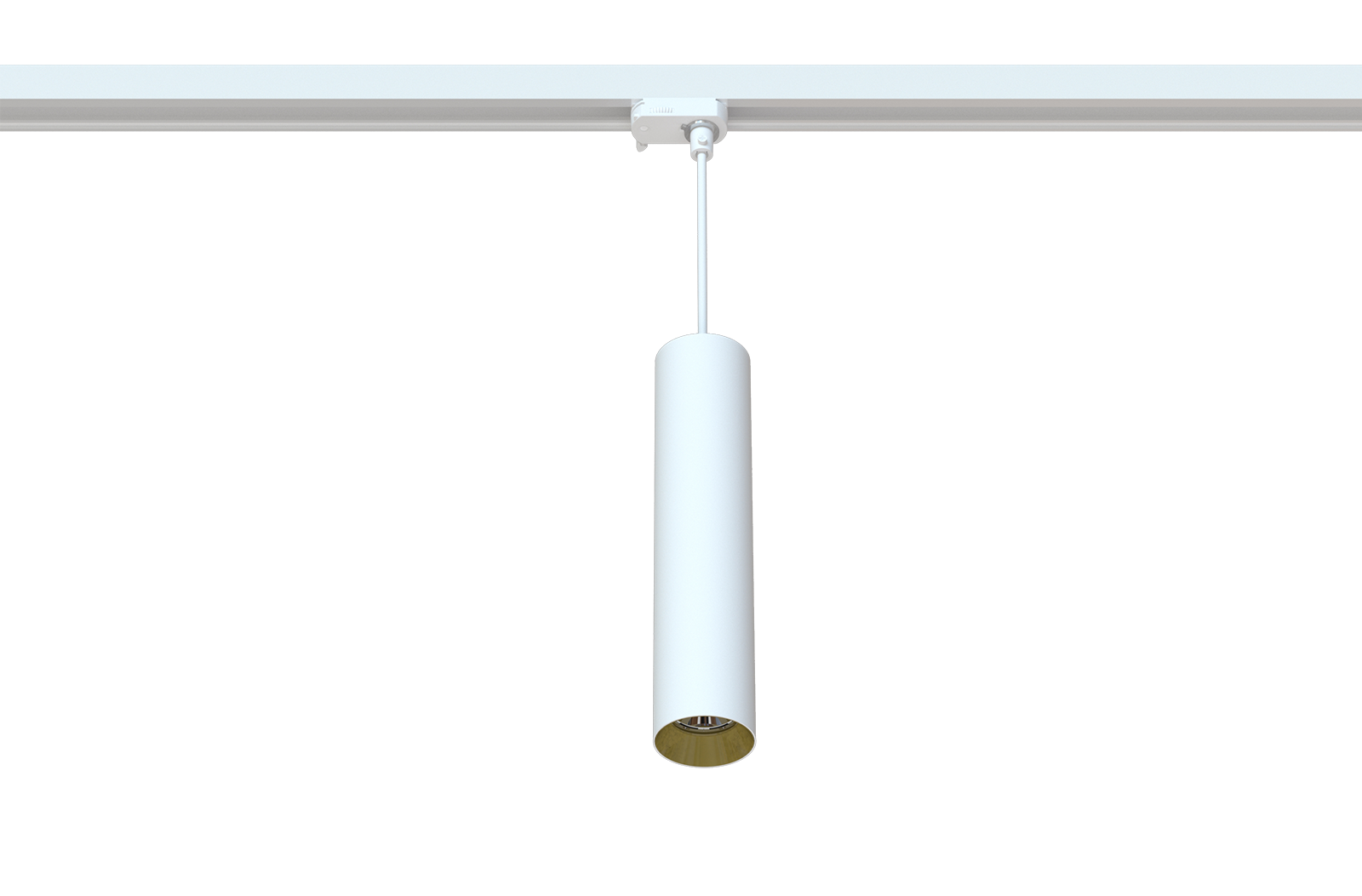

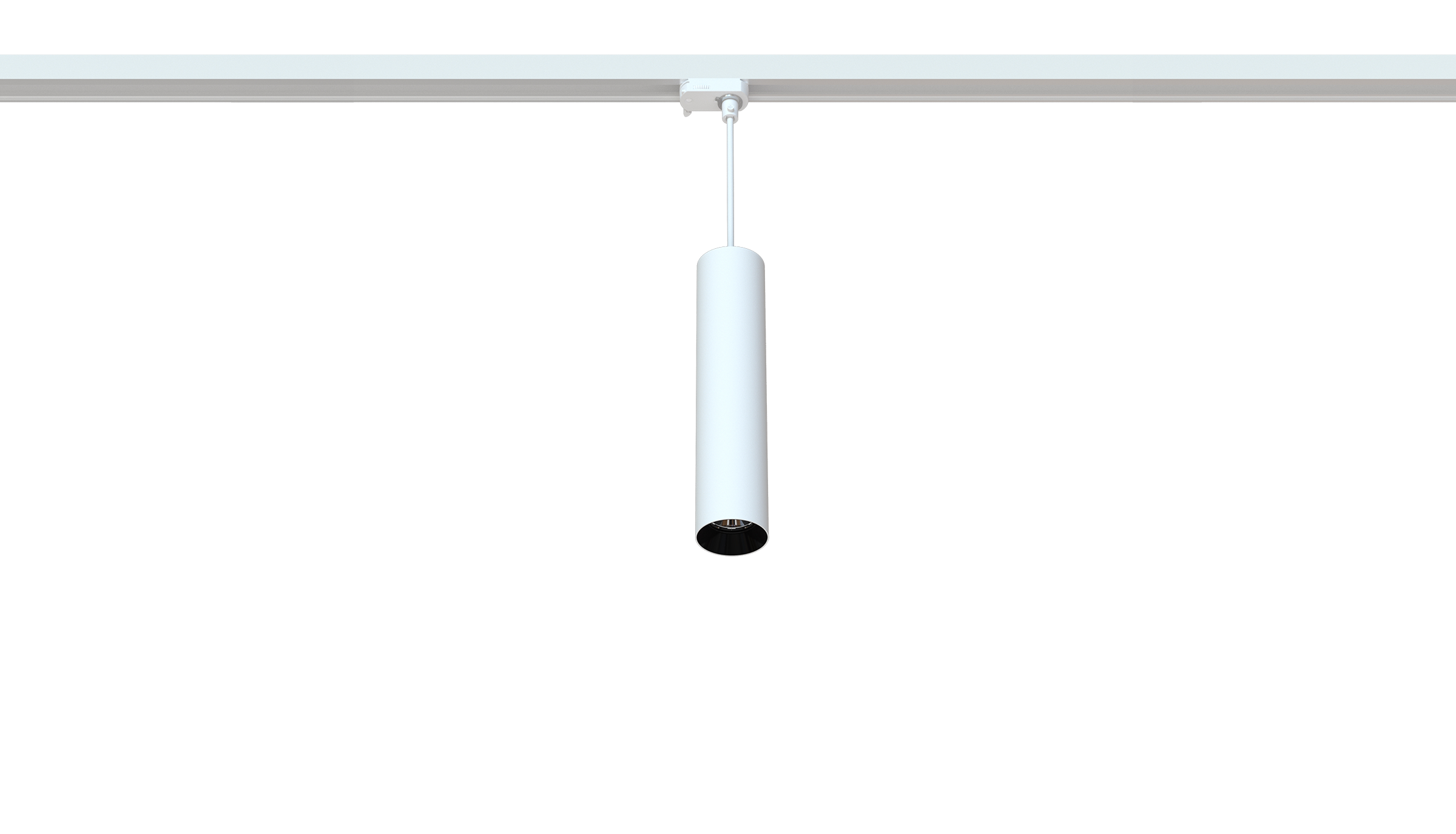

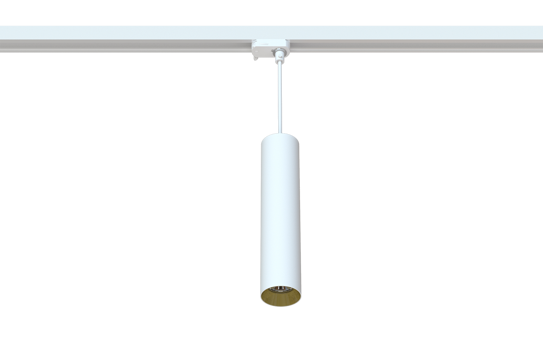

Stylish designs for stylish applications: Raa is designed as a compact rail-mounted pendant spotlight that provides elegance without sacrificing its looks. The powder-coated aluminum cylindrical body has an anti-shine baffle in front of it for visual comfort. Spot, medium and flood angle options are available, available in 1170lm (CRI90) or 1320lm (CRI80) options. Standard colors are black or gold baffle, white or black body.
Reflector
Polycarbon reflector designed for high efficiency in LED modules.
Led
According to L70B50 ≥50,000 hours, COB led with high efficacy factor and color rendering.
Power Supply and Assembly
In the On/Off version, the Raa product is mounted on the rail with a 3-phase universal adapter, while in the Dali version, it is mounted on the Dali compatible rail with the Led driver.
- SRRAA.14.S.80.30
- SRRAA.14.M.80.30
- SRRAA.14.F.80.30
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| SRRAA.14.S.80.27 | 14 | 2700 | 840 | >80 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRRAA.14.S.80.30 | 14 | 3000 | 1160 | >80 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRRAA.14.M.80.27 | 14 | 2700 | 830 | >80 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRRAA.14.M.80.30 | 14 | 3000 | 1300 | >80 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRRAA.14.F.80.27 | 14 | 2700 | 830 | >80 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRRAA.14.F.80.30 | 14 | 3000 | 1360 | >80 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRRAA.14.S.90.27 | 14 | 2700 | 880 | >90 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRRAA.14.S.90.31 | 14 | 3100 | 1100 | >90 | 220-240/50-60 | 0,95 | Spot (15°) |
|
| SRRAA.14.M.90.27 | 14 | 2700 | 890 | >90 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRRAA.14.M.90.31 | 14 | 3100 | 1080 | >90 | 220-240/50-60 | 0,95 | Medium (35°) |
|
| SRRAA.14.F.90.27 | 14 | 2700 | 900 | >90 | 220-240/50-60 | 0,95 | Flood (50°) |
|
| SRRAA.14.F.90.31 | 14 | 3100 | 1030 | >90 | 220-240/50-60 | 0,95 | Flood (50°) |
|
