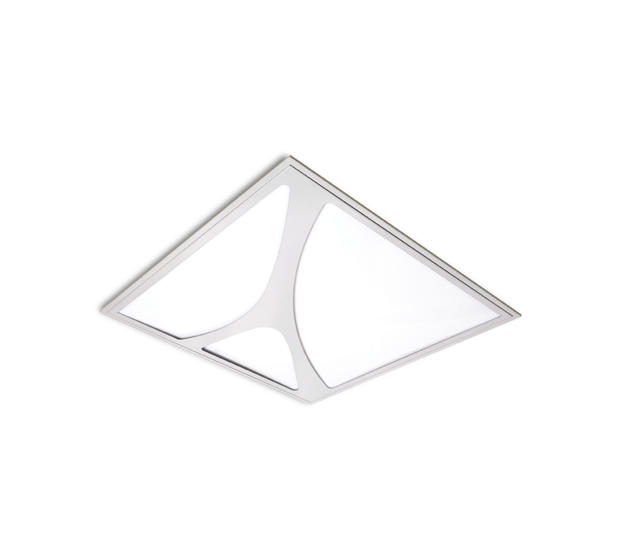

G 6060 Boy Header

Bond Y

Ip 40 20Ikon 1ToprakCeEacAcil Cikis

Housing
Sheet steel body with electrostatic powder coating.

Optics
Opal white polystyrene diffuser with lambertian light distribution.

Led
High-efficiency LED with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.

Driver
Constant current output LED driver with high efficiency and Pf≥0.95

Options
* 1 or 3 hours emergency lighting kit
* Dimming via DALI

Color
Ral 9016
Ral 9006
Dimensions
G 6060 Boy Cizim

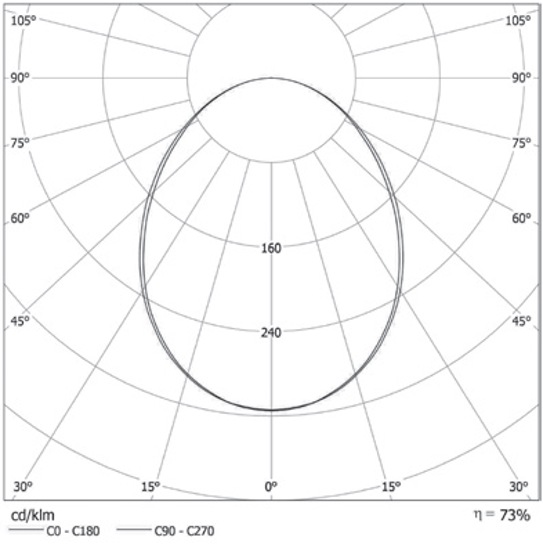

Light Distribution
G 6060 Boy Idg G 6060 BOY
Filter By
Technical Data
Type Code Power (w) CCT (K) Light Output (lm) CRI V/Hz Weight (Kg) Cut-out Size (mm) Files
GBOY.6060.36.30 36 3000 3270 >80 220-240/50-60 4,7 580x580 Files
GBOY.6060.36.40 36 4000 3620 >80 220-240/50-60 4,7 580x580 Files
GBOY.6060.28.30 28 3000 2380 >80 220-240/50-60 4,7 580x580 Files
GBOY.6060.28.40 28 4000 2620 >80 220-240/50-60 4,7 580x580 Files
