Gövde
Beyaz elektrostatik toz boyalı aluminyum ekstrüzyon profil.
Difüzör
PMMA (akrilik) optik lens.
Led
L90'a göre ≥100.000 saat, yüksek etkinlik faktörüne ve renksel geriverime sahip high power.
Sürücü
24 V harici tip, sabit gerilim çıkışlı, yüksek geri verimli led sürücü.
Aksesuar

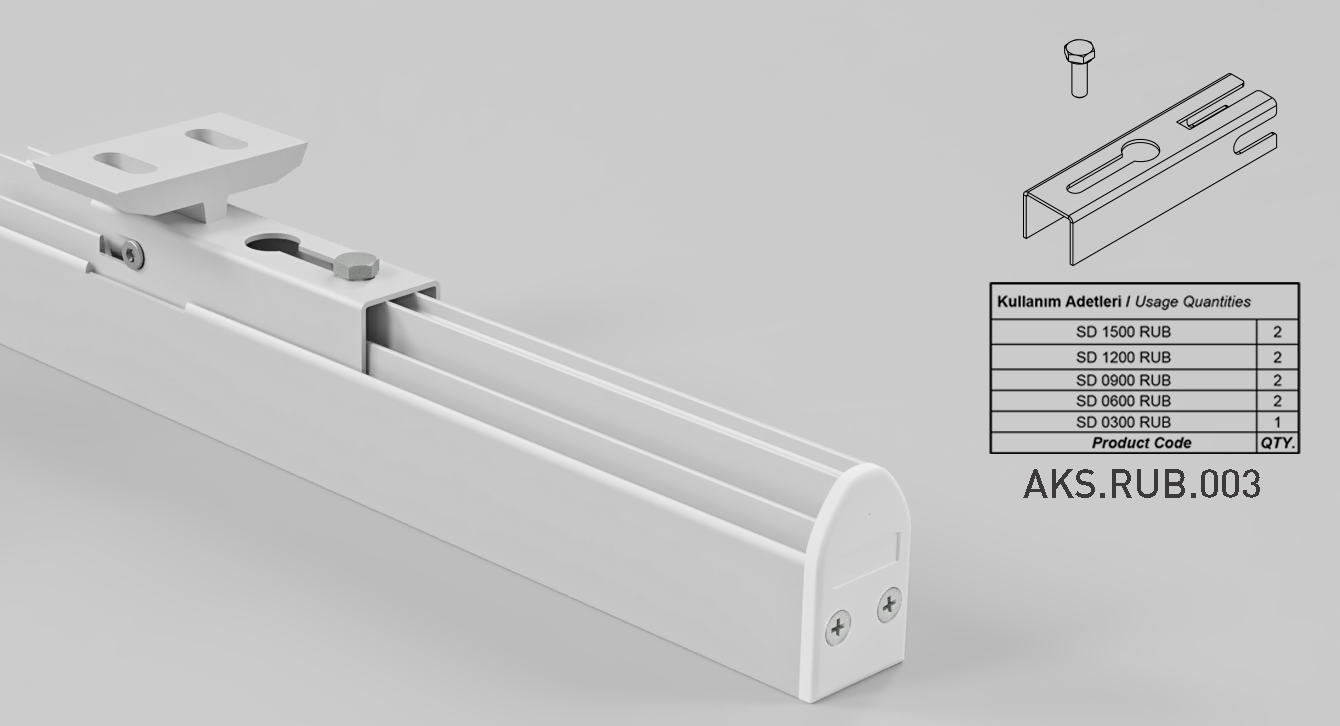

90° sabitleme aksesuarı (Aksesuarlar sekmesini inceleyiniz)

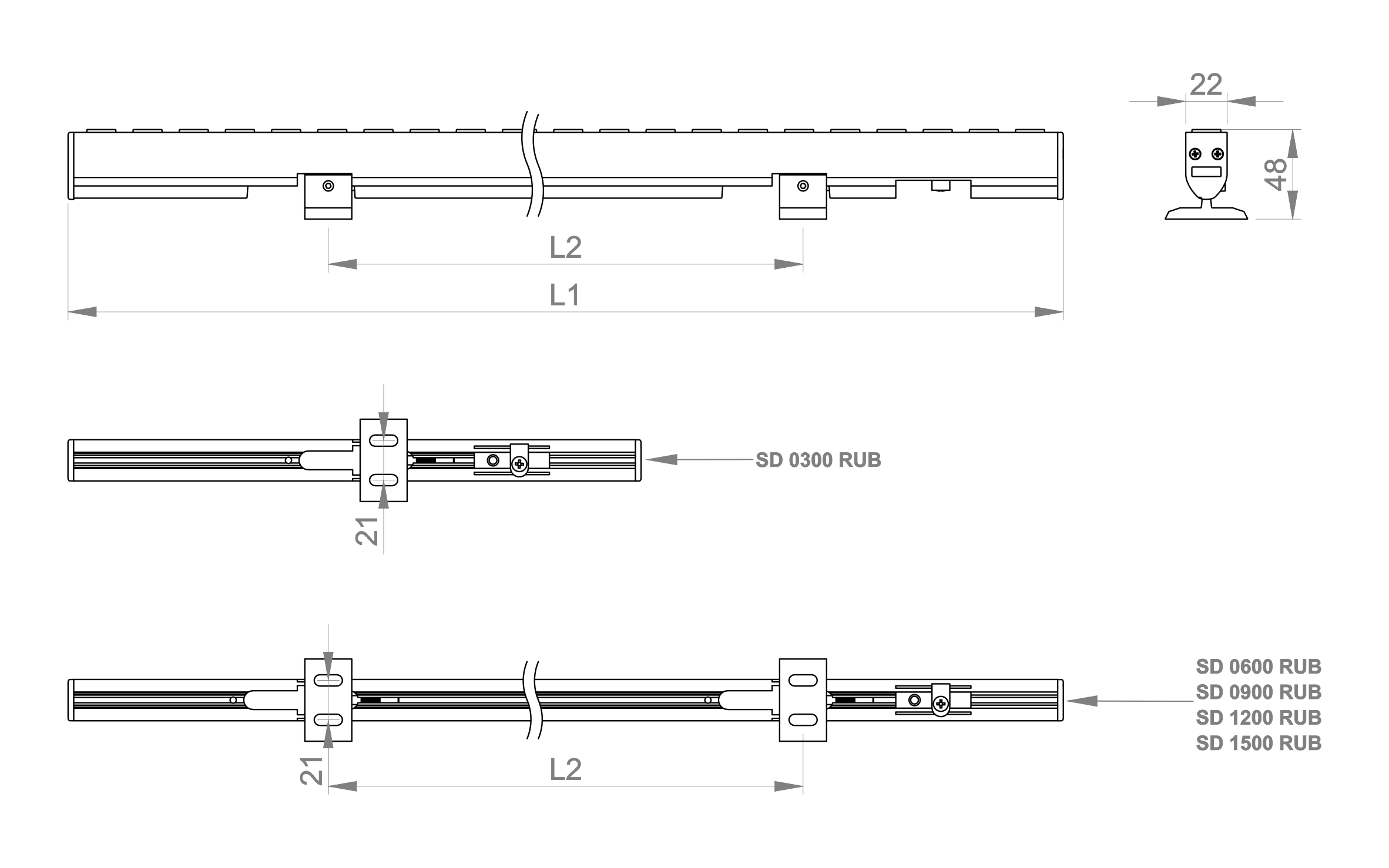

Ölçüler
Işık Dağılımı

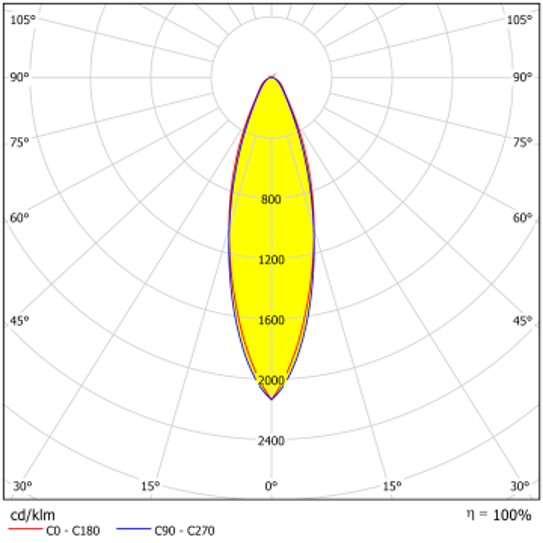

- 27°
- 38°

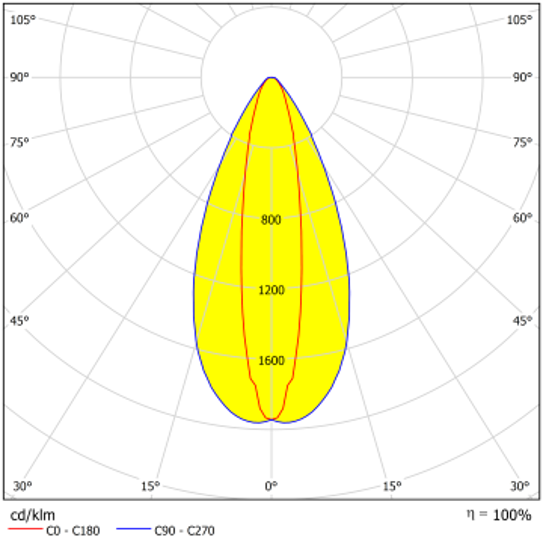

- 20°/45°

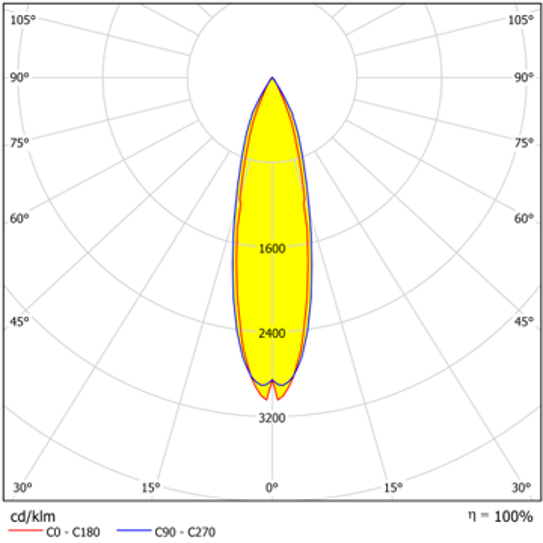

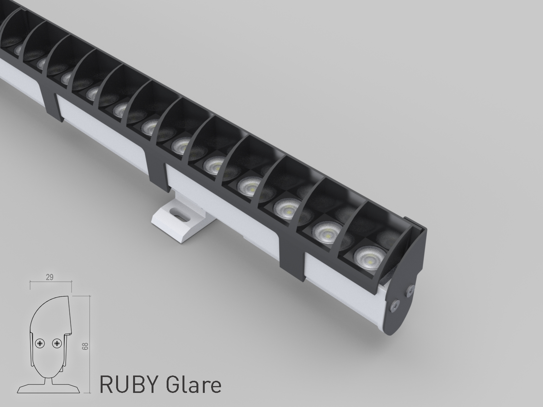

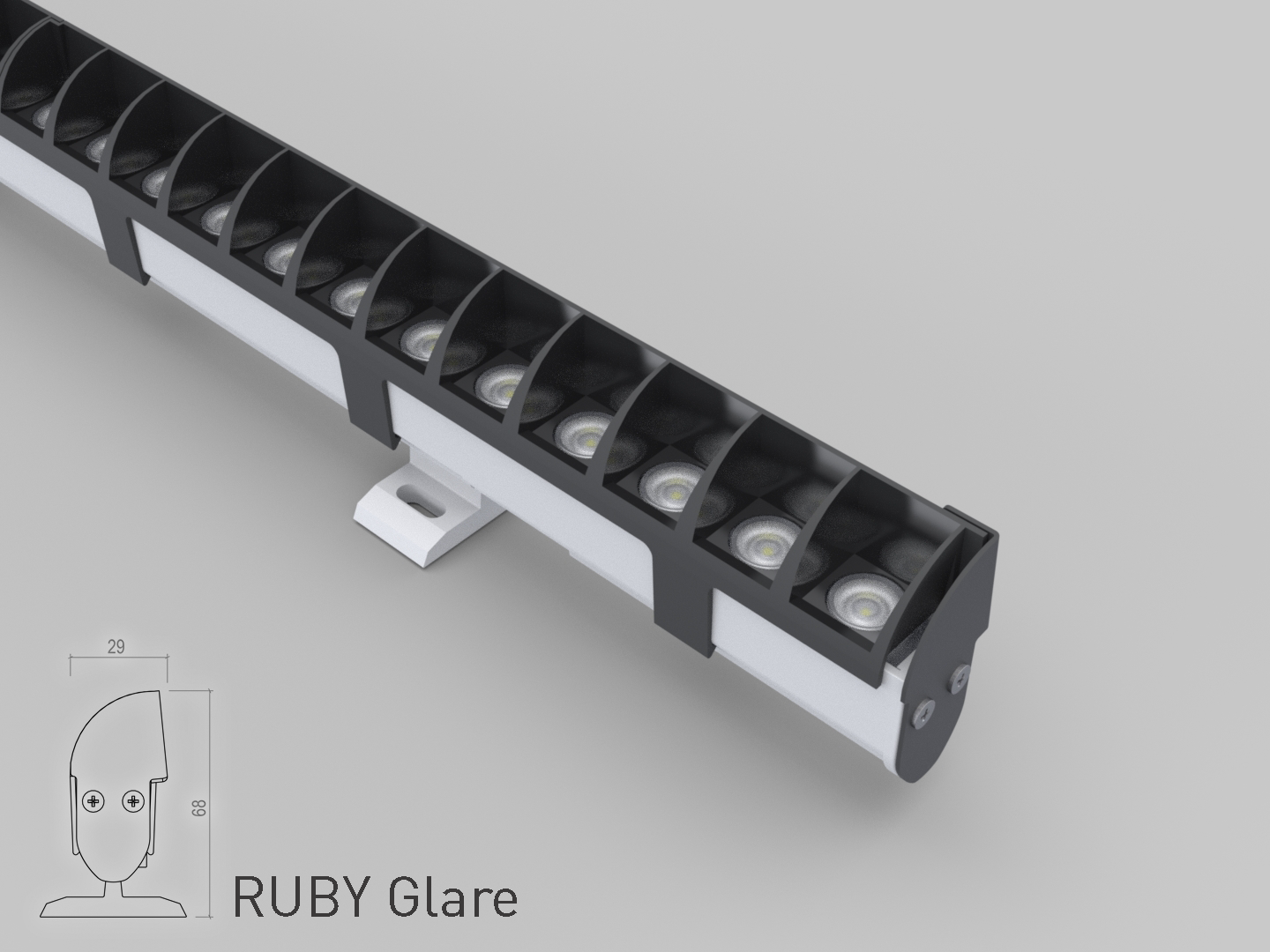

- 27° Black Baffle Glare

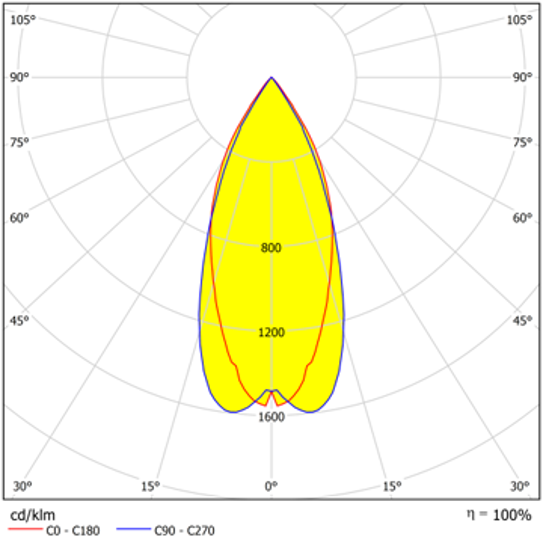

- 38° Black Baffle Glare

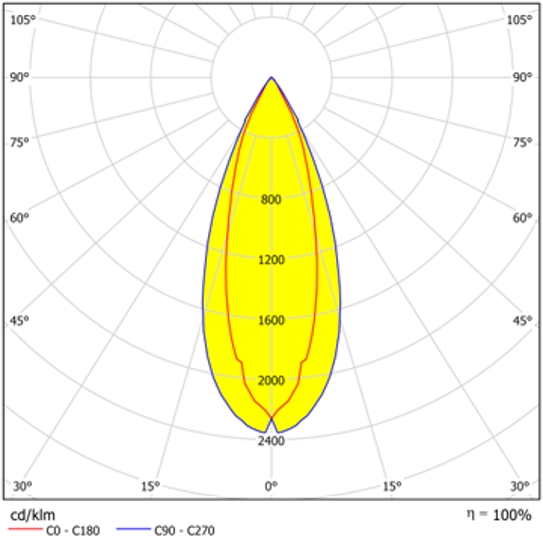

- 20°/45° Black Baffle Glare
Aksesuarlar
Filtrele
Teknik Veriler
| Tip Kodu | Güç (w) | CCT (K) | Işık Akısı (lm) | CRI | V/Hz | Ağırlık (Kg) | Açı | L1 (mm) | L2 (mm) | Dosyalar | Şartname Metni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SD 0300 RUB SDRUB.300.27.11.30 | 11 | 3000 | 1150 | >80 | 24V DC | 0,28 | 27° | 305 | - |
|
|
| SD 0300 RUB SDRUB.300.38.11.30 | 11 | 3000 | 1150 | >80 | 24V DC | 0,28 | 38° | 305 |
|
|
|
| SD 0300 RUB SDRUB.300.4520.11.30 | 11 | 3000 | 990 | >80 | 24V DC | 0,28 | 20°/45° | 305 |
|
|
|
| SD 0600 RUB SDRUB.600.27.23.30 | 23 | 3000 | 2310 | >80 | 24V DC | 0,57 | 27° | 602 | 325 |
|
|
| SD 0600 RUB SDRUB.600.38.23.30 | 23 | 3000 | 2310 | >80 | 24V DC | 0,57 | 38° | 602 | 325 |
|
|
| SD 0600 RUB SDRUB.600.4520.23.30 | 23 | 3000 | 1980 | >80 | 24V DC | 0,57 | 20°/45° | 602 | 325 |
|
|
| SD 0900 RUB SDRUB.900.27.33.30 | 33 | 3000 | 3460 | >80 | 24V DC | 0,85 | 27° | 898 | 617 |
|
|
| SD 0900 RUB SDRUB.900.38.33.30 | 33 | 3000 | 3460 | >80 | 24V DC | 0,85 | 38° | 898 | 617 |
|
|
| SD 0900 RUB SDRUB.900.4520.33.30 | 33 | 3000 | 2990 | >80 | 24V DC | 0,85 | 20°/45° | 898 | 617 |
|
|
| SD 1200 RUB SDRUB.1200.27.44.30 | 44 | 3000 | 4620 | >80 | 24V DC | 1,42 | 27° | 1195 | 750 |
|
|
| SD 1200 RUB SDRUB.1200.38.44.30 | 44 | 3000 | 4620 | >80 | 24V DC | 1,14 | 38 | 1195 | 750 |
|
|
| SD 1200 RUB SDRUB.1200.4520.44.30 | 44 | 3000 | 3960 | >80 | 24V DC | 1,14 | 20°/45° | 1195 | 750 |
|
|
| SD 1500 RUB SDRUB.1500.27.55.30 | 55 | 3000 | 5770 | >80 | 24V DC | 1,42 | 27° | 1490 | 900 |
|
|
| SD 1500 RUB SDRUB.1500.38.55.30 | 55 | 3000 | 5770 | >80 | 24V DC | 1,42 | 38° | 1490 | 900 |
|
|
| SD 1500 RUB SDRUB.1500.4520.55.30 | 55 | 3000 | 4950 | >80 | 24V DC | 1,42 | 20°/45° | 1490 | 900 |
|
|
| SD 0300 RUB - Glare SDRUB.G.300.27.11.30 | 11 | 3000 | 805 | >80 | 24V DC | 0,37 | 27° | 307 |
|
|
|
| SD 0300 RUB - Glare SDRUB.G.300.38.11.30 | 11 | 3000 | 805 | >80 | 24V DC | 0,37 | 38° | 307 |
|
|
|
| SD 0300 RUB - Glare SDRUB.G.300.4520.11.30 | 11 | 3000 | 760 | >80 | 24V DC | 0,37 | 20°/45° | 307 |
|
|
|
| SD 0600 RUB - Glare SDRUB.G.600.27.23.30 | 23 | 3000 | 1620 | >80 | 24V DC | 0,7 | 27° | 604 | 325 |
|
|
| SD 0600 RUB - Glare SDRUB.G.600.38.23.30 | 23 | 3000 | 1620 | >80 | 24V DC | 0,7 | 38° | 604 | 325 |
|
|
| SD 0600 RUB - Glare SDRUB.G.600.27.4520.30 | 23 | 3000 | 1520 | >80 | 24V DC | 0,7 | 20°/45° | 604 | 325 |
|
|
| SD 0900 RUB -Glare SDRUB.G.900.27.33.30 | 33 | 3000 | 2500 | >80 | 20°/45° | 1 | 27° | 991 | 617 |
|
|
| SD 0900 RUB -Glare SDRUB.G.900.38.33.30 | 33 | 3000 | 2420 | >80 | 24V DC | 1 | 38° | 991 | 617 |
|
|
| SD 0900 RUB -Glare SDRUB.G.900.4520.33.30 | 33 | 3000 | 2240 | >80 | 24V DC | 1 | 20°/45° | 991 | 617 |
|
|
| SD 1200 RUB - Glare SDRUB.G.1200.27.44.30 | 44 | 3000 | 3580 | >80 | 24V DC | 1,4 | 27° | 1197 | 750 |
|
|
| SD 1200 RUB - Glare SDRUB.G.1200.38.44.30 | 44 | 3000 | 3580 | >80 | 24V DC | 1,4 | 38° | 1197 | 750 |
|
|
| SD 1200 RUB - Glare SDRUB.G.1200.4520.44.30 | 44 | 3000 | 2430 | >80 | 24V DC | 1,4 | 20°/45° | 1197 | 750 |
|
|
| SD 1500 RUB - Glare SDRUB.G.1500.27.55.30 | 55 | 3000 | 4030 | >80 | 24V DC | 1,7 | 27° | 1492 | 900 |
|
|
| SD 1500 RUB - Glare SDRUB.G.1500.38.55.30 | 55 | 3000 | 4030 | >80 | 24V DC | 1,7 | 38° | 1492 | 900 |
|
|
| SD 1500 RUB - Glare SDRUB.G.1500.4520.55.30 | 55 | 3000 | 3540 | >80 | 24V DC | 1,7 | 20°/45° | 1492 | 900 |
|
|
