Body
Electrostatic powder coated DKP sheet metal body.
Reflector
0.5mm opal lens and 0.6mm perforated sheet metal.
Led
LED module with high efficacy factor and color rendering, L70B50≥50,000 hours.
Driver
Constant current output, Pf ≥0.90 high efficiency.
Option
* 1 or 3 hours emergency lighting module.
* Can be dimmed via DALI.
* Sensor can be added.
Color
Ral 9005
Ral 9016

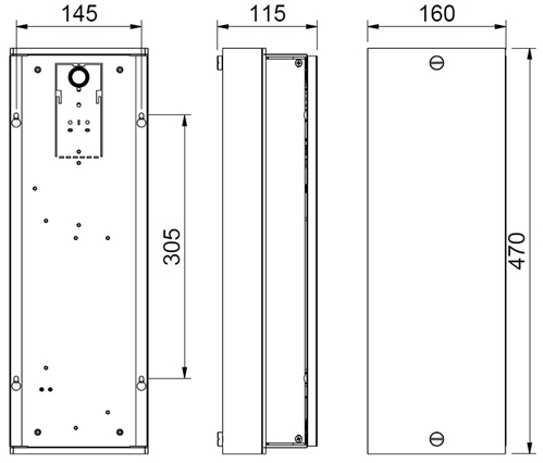

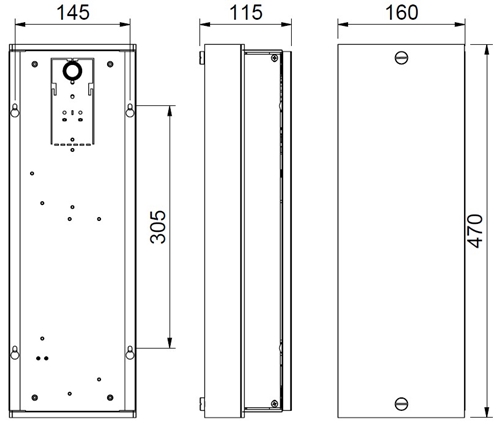

Dimensions
Light Distribution
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| AS0470EPL.20.40 | 20 | 4000 | 800 | >80 | 220-240/50-60 | 1,2 |
|
