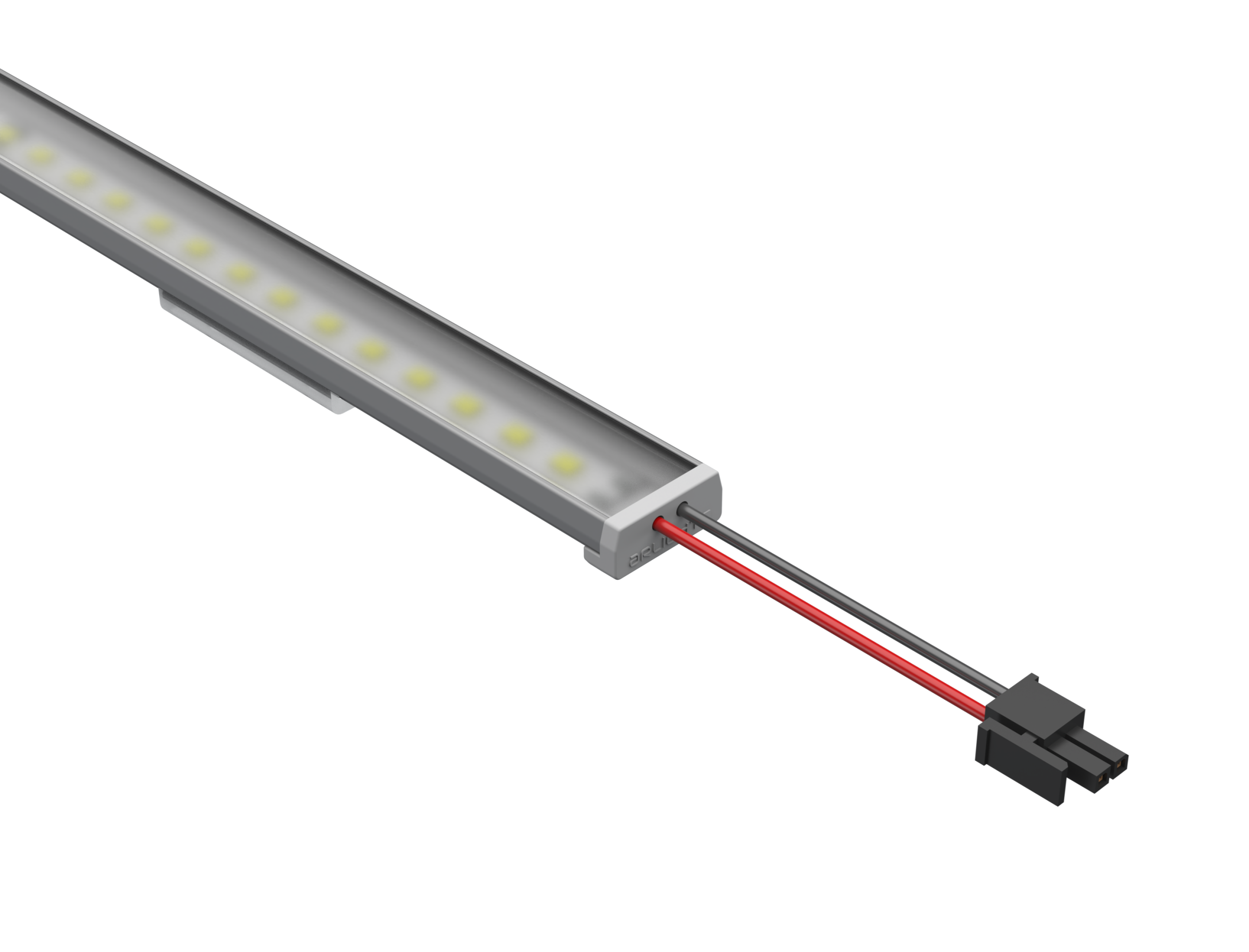

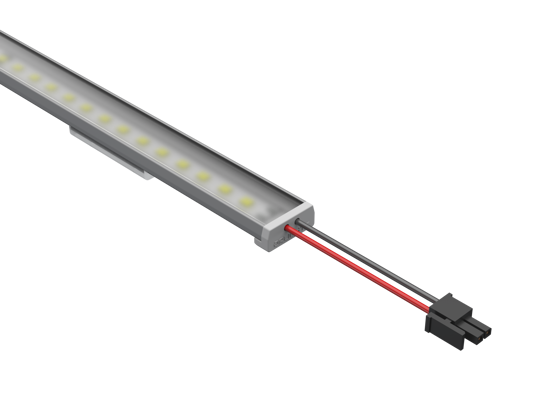

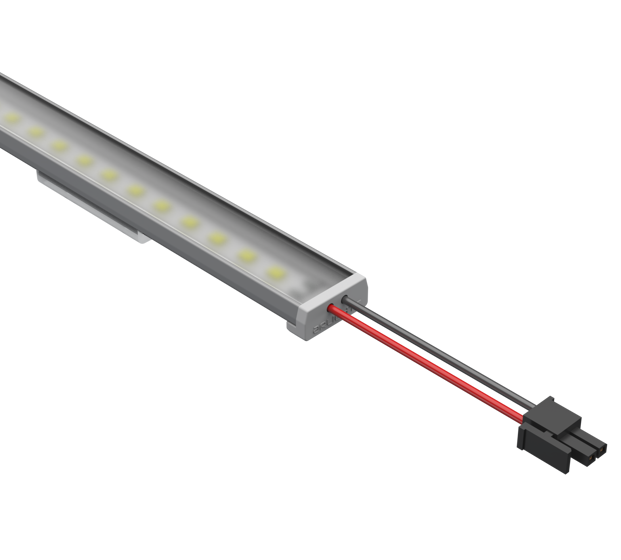

Housing
Matt natural anodized, aluminum extrusion profile and mounting accessories with plastic end cap
Diffuser
Frosted diffusing polycarbonate diffuser with lambertian light distribution
Led
High-efficacy mid power LED, achieving L70B50 ≥ 50,000 hours of lifetime
Driver
24V external type. Constant voltage output driver with high efficiency
Dimensions
Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | L (mm) | Files |
|---|---|---|---|---|---|---|---|
| Tipler SDSRHB0140.3.40 | 3 | 4000 | 234 | >80 | 24V DC | 140 |
|
| Tipler SDSRHB0140.3.30 | 3 | 3000 | 229 | >80 | 24V DC | 140 |
|
| Tipler SDSRHB.0264.6.40 | 6 | 4000 | 498 | >80 | 24V DC | 264 |
|
| Tipler SDSRHB.0264.6.30 | 6 | 3000 | 496 | >80 | 24V DC | 264 |
|
| Tipler SDSRHB.0511.11.40 | 11 | 4000 | 941 | >80 | 24V DC | 511 |
|
| Tipler SDSRHB.0511.11.30 | 11 | 3000 | 922 | >80 | 24V DC | 511 |
|
| Tipler SDSRHB.1005.24.40 | 24 | 4000 | 2063 | >80 | 24V DC | 1005 |
|
| Tipler SDSRHB.1005.24.30 | 24 | 3000 | 2022 | >80 | 24V DC | 1055 |
|
| Tipler SDSRHB.1252.29.40 | 29 | 4000 | 2570 | >80 | 24V DC | 1252 |
|
| Tipler SDSRHB.1252.29.30 | 29 | 3000 | 2519 | >80 | 24V DC | 1252 |
|
| Tipler SDSRHB.1499.36.40 | 36 | 4000 | 3134 | >80 | 24V DC | 1499 |
|
| Tipler SDSRHB.1499.36.30 | 36 | 3000 | 3142 | >80 | 24V DC | 1499 |
|
