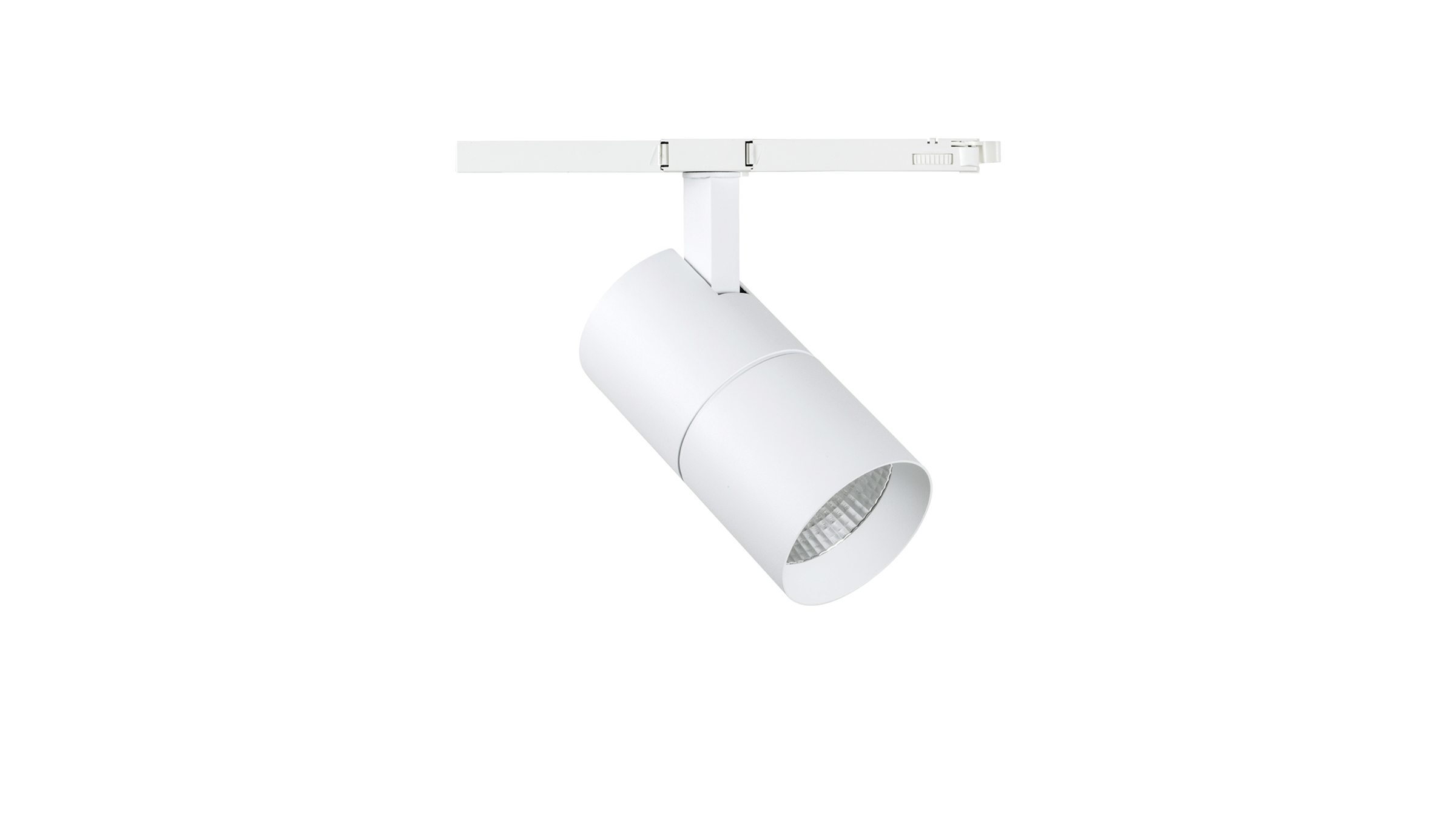

Installation

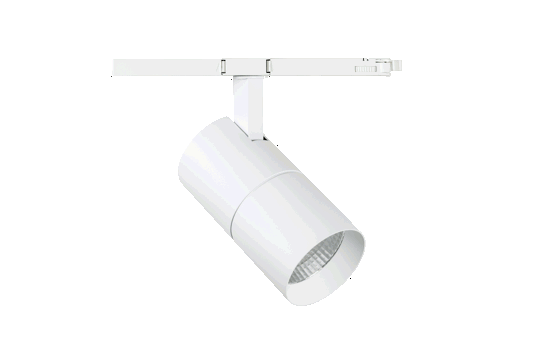

Installation on three-phase track.
Housing
Aluminum injection frame with electrostatic powder coating and die-cast aluminum heatsink.
Optics
Anodized aluminum reflector, designed specially for LED modules.
Led
High-efficacy COB LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,9.
Ambient Temperature
0 °C /+25 °C
Options
Dimming via Dali
Color
Ral 9016
Ral 9005

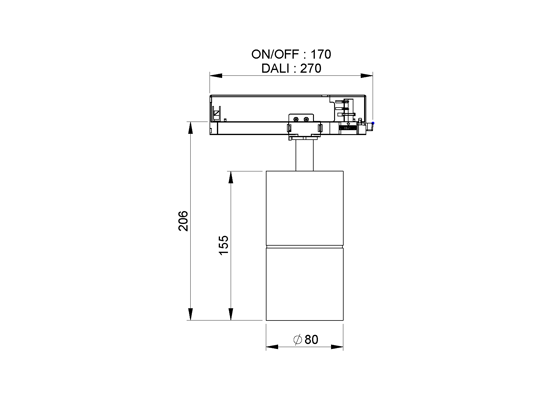

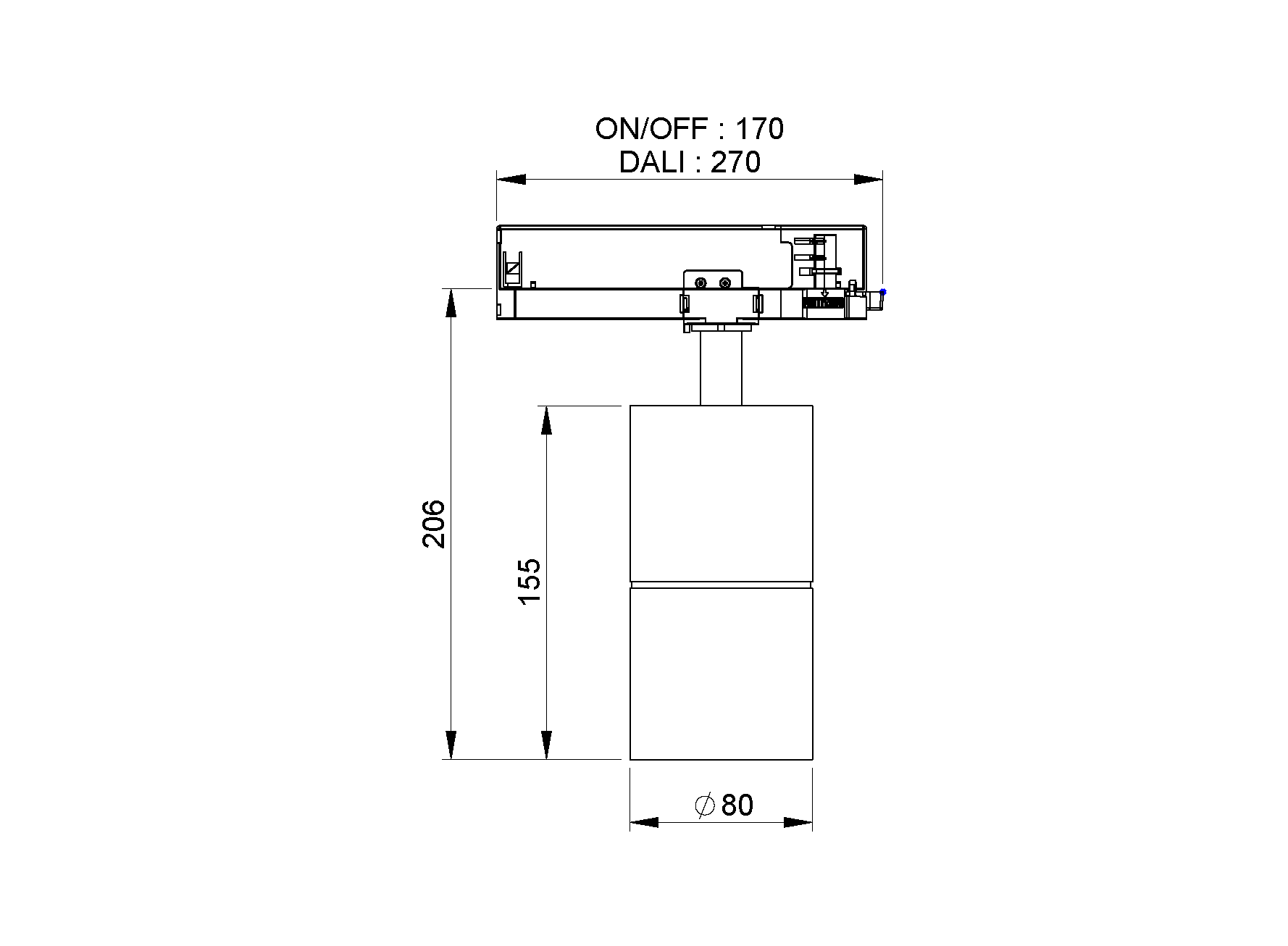

Dimensions
Light Distribution

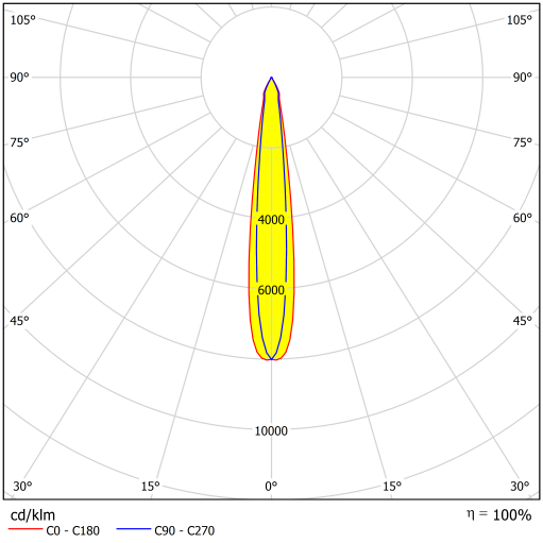

- DSVIV.08.27.40.15.80

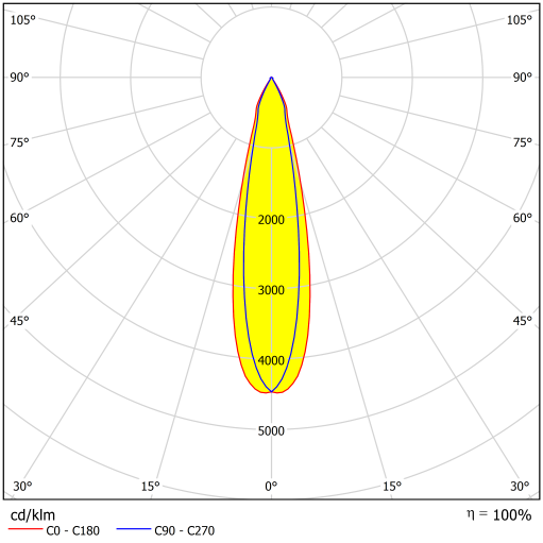

- DSVIV.08.27.40.25.80

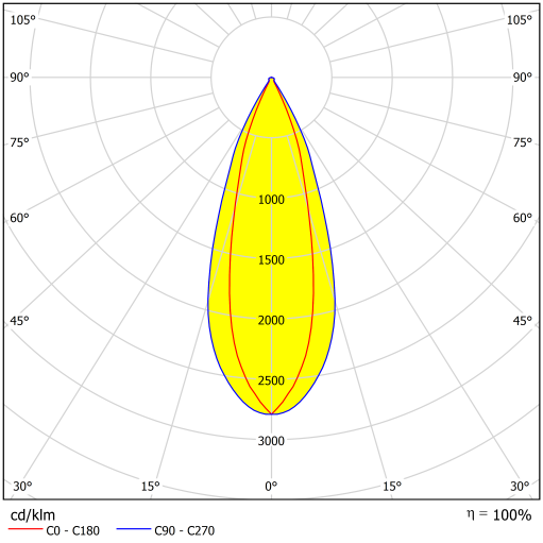

- DSVIV.08.27.40.35.80
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| DS 1008 VIV DSVIV.08.20.30.15.80 | 20 | 3000 | 2160 | >80 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.20.40.15.80 | 20 | 4000 | 2310 | >80 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.20.30.24.80 | 20 | 3000 | 2160 | >80 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.20.40.24.80 | 20 | 4000 | 2310 | >80 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.20.30.35.80 | 20 | 3000 | 2160 | >80 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.20.40.35.80 | 20 | 4000 | 2310 | >80 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.27.30.15.80 | 27 | 3000 | 2900 | >80 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.27.40.15.80 | 27 | 4000 | 3100 | >80 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.27.30.25.80 | 27 | 3000 | 2870 | >80 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.27.40.25.80 | 27 | 4000 | 3070 | >80 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.27.30.35.80 | 27 | 3000 | 2820 | >80 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.27.40.35.80 | 27 | 4000 | 3010 | >80 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.20.30.15.90 | 20 | 2080 | 2160 | >90 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.20.40.15.90 | 20 | 4000 | 2010 | >90 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.20.30.25.90 | 20 | 3000 | 2070 | >90 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.20.40.25.90 | 20 | 4000 | 2010 | >90 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.20.30.35.90 | 20 | 3000 | 2050 | >90 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.20.40.35.90 | 20 | 4000 | 2010 | >90 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.27.30.15.90 | 27 | 3000 | 2740 | >90 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.27.40.15.90 | 27 | 4000 | 2700 | >90 | 220-240/50-60 | 0,8 | 15° |
|
| DS 1008 VIV DSVIV.08.27.30.25.90 | 27 | 3000 | 2750 | >90 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.27.40.25.90 | 27 | 4000 | 2670 | >90 | 220-240/50-60 | 0,8 | 25° |
|
| DS 1008 VIV DSVIV.08.27.30.35.90 | 27 | 3000 | 2740 | >90 | 220-240/50-60 | 0,8 | 35° |
|
| DS 1008 VIV DSVIV.08.27.40.35.90 | 27 | 4000 | 2620 | >90 | 220-240/50-60 | 0,8 | 35° |
|
