Housing
Electrostatic powder coatind steel body, aluminum injection inner body and die-cast aluminum heatsink.
Optics
Highly efficient PMMA lens, designed specially for High Power LED.
Led
High-efficacy High Power LED with CRI>80, achieving L70B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and pf >0,8.
Options
Dimming via DALI
Color

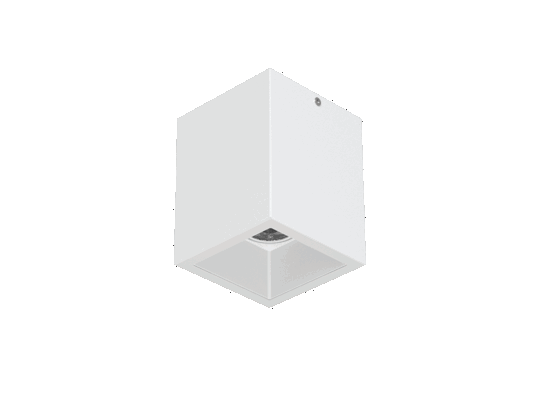

Ral 9016

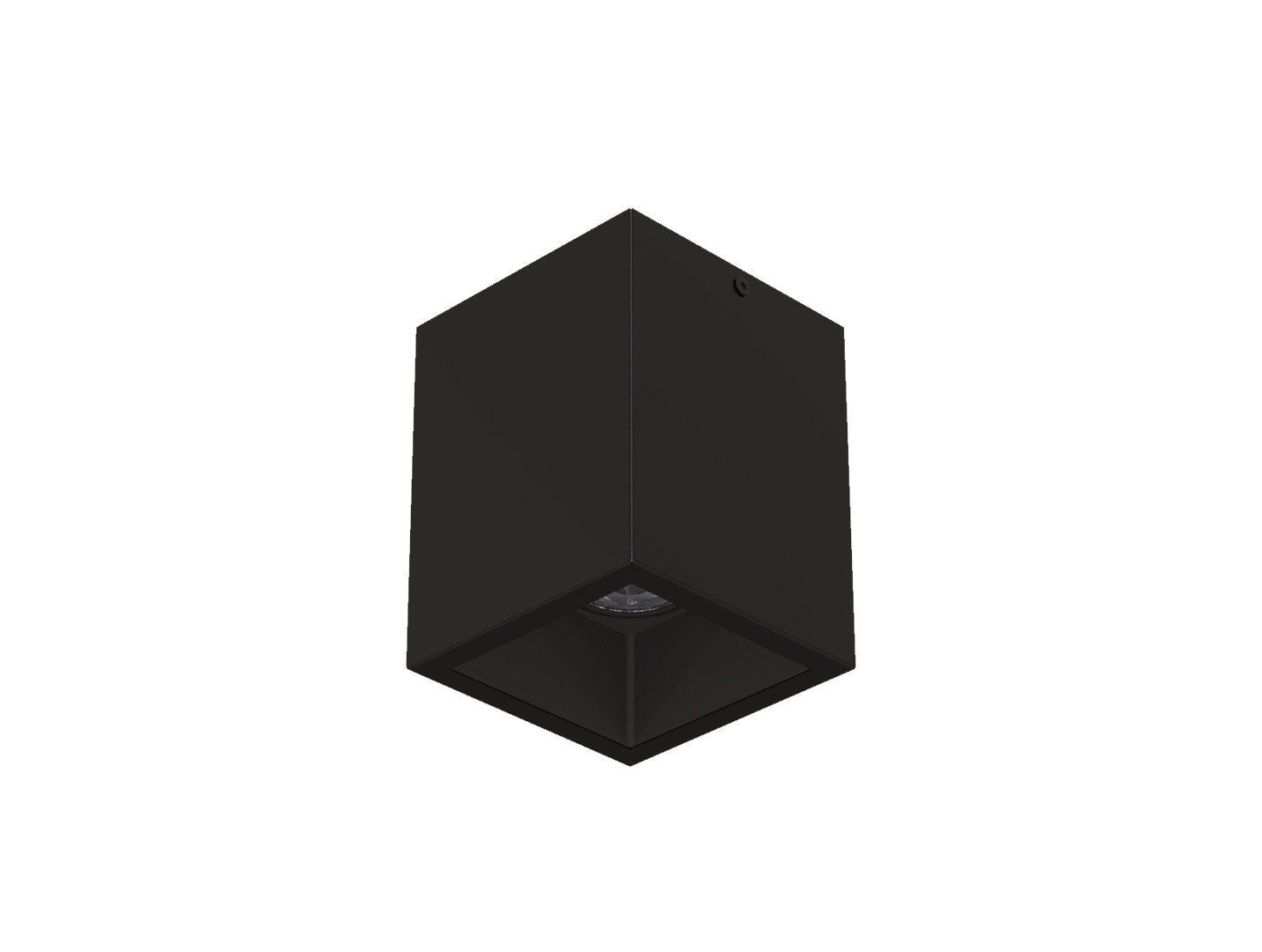

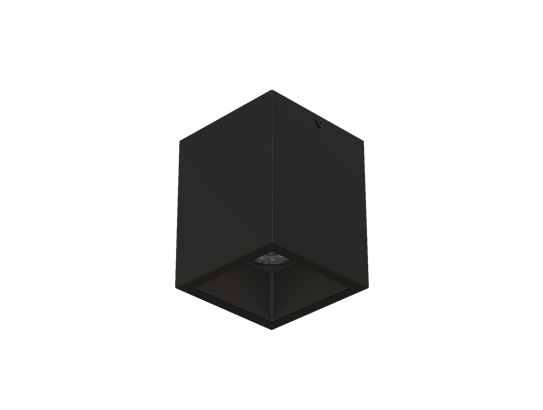

Ral 9005

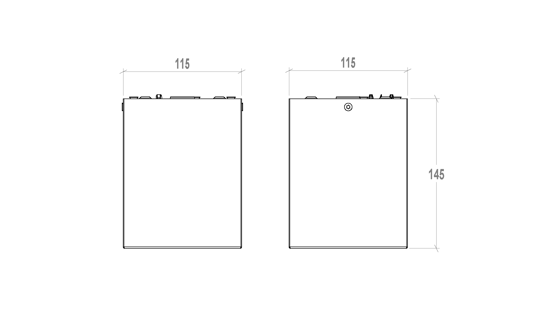

Dimensions
Light Distribution

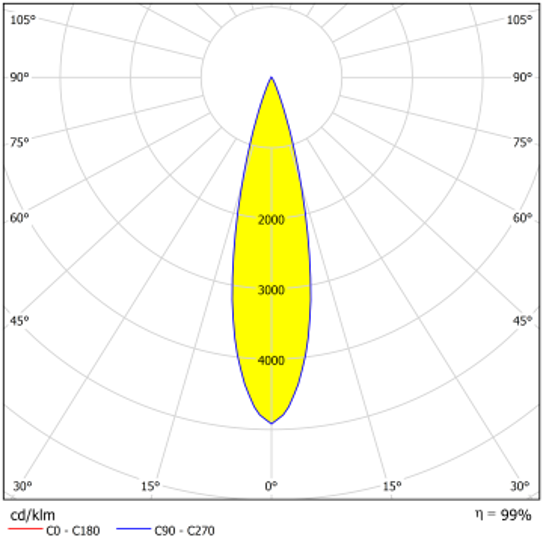

- DSSAK.110.11.40.25

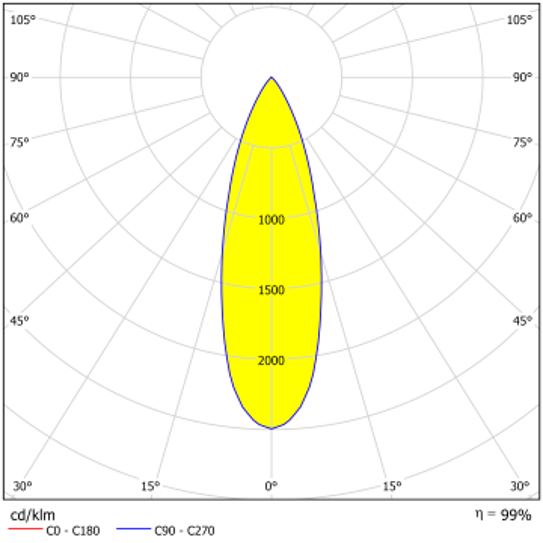

- DGMOT.160.27.40.40

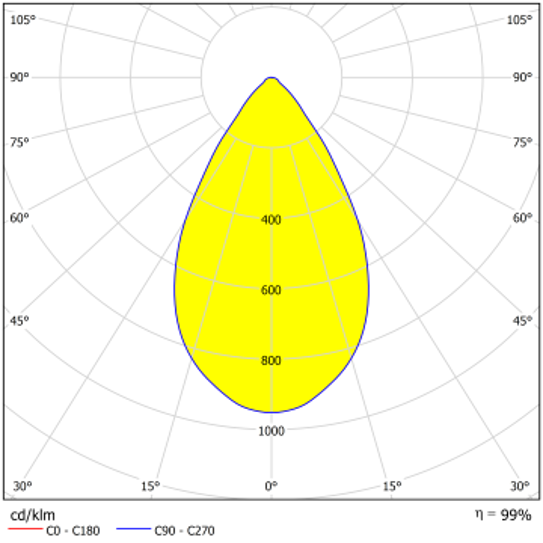

- DSSAK.110.11.40.60
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Beam Angle | Files |
|---|---|---|---|---|---|---|---|---|
| DSSAK.110.8.30.25 | 8 | 3000 | 790 | >80 | 220-240/50-60 | 1 | 25° |
|
| DSSAK.110.8.40.25 | 8 | 4000 | 850 | >80 | 220-240/50-60 | 1 | 25° |
|
| DSSAK.110.8.30.35 | 8 | 3000 | 760 | >80 | 220-240/50-60 | 1 | 35° |
|
| DSSAK.110.8.40.35 | 8 | 4000 | 820 | >80 | 220-240/50-60 | 1 | 35° |
|
| DSSAK.110.8.30.60 | 8 | 3000 | 710 | >80 | 220-240/50-60 | 1 | 60° |
|
| DSSAK.110.8.40.60 | 8 | 4000 | 760 | >80 | 220-240/50-60 | 1 | 60° |
|
| DSSAK.110.11.30.25 | 11 | 3000 | 1050 | >80 | 220-240/50-60 | 1 | 25° |
|
| DSSAK.110.11.40.25 | 11 | 4000 | 1130 | >80 | 220-240/50-60 | 1 | 25° |
|
| DSSAK.110.11.30.35 | 11 | 3000 | 1020 | >80 | 220-240/50-60 | 1 | 35° |
|
| DSSAK.110.11.40.35 | 11 | 4000 | 1090 | >80 | 220-240/50-60 | 1 | 35° |
|
| DSSAK.110.11.30.60 | 11 | 3000 | 950 | >80 | 220-240/50-60 | 1 | 60° |
|
| DSSAK.110.11.40.60 | 11 | 4000 | 1020 | >80 | 220-240/50-60 | 1 | 60° |
|
