Housing
Produced through injection method, stroke and UV ray resistant Polycarbonate (PC).
Optics
Produced through injection method, stroke-resistant, opal polycarbonate (PC) diffuser.
Interior Housing
High quality steel sheet with electrostatic powder coating, mounted with special clips.
Gasket
Ensoft S 160-26A- material monoblock gasket
Led
High-efficacy LED MODULE with CRI>80, achieving L90B50 ≥ 50,000 hours of lifetime.
Driver
Constant current output LED driver with high efficiency and Pf≥0.95.
Ambient Temperature
-20 °C/+40 °C (With Emergency Lighting Unit : 0 °C/+30 °C)
Options
1 or 3 hours emergency lighting kit
Dimming via DALI

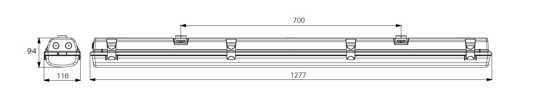

Dimensions

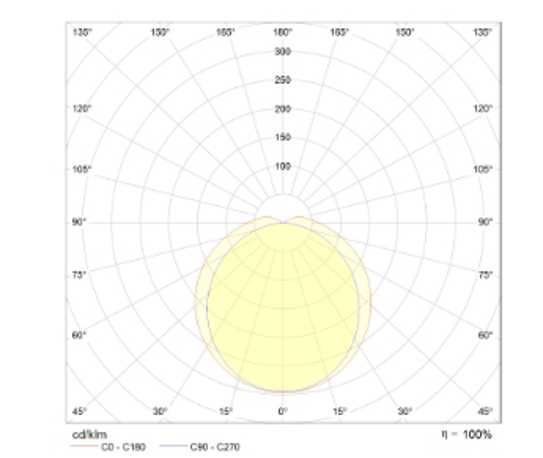

Light Distribution
Filter By
Technical Data
| Type Code | Power (w) | CCT (K) | Light Output (lm) | CRI | V/Hz | Weight (Kg) | Files |
|---|---|---|---|---|---|---|---|
| EUPM.1206.36.30 | 36 | 3000 | 4640 | >80 | 220-240/50-60 | 2,0 |
|
| EUPM.1206.36.40 | 36 | 4000 | 4960 | >80 | 220-240/50-60 | 2,0 |
|
